A brake chamber is a mechanical component that is used in air brakes and hydraulic brakes.
In air brakes, the brake chamber is a cylinder-shaped component that is attached to the brake pedal or lever. When the brake pedal is pressed, it pushes a rod into the brake chamber, which activates a diaphragm inside the chamber. The diaphragm pushes against a spring, and this pressure is transmitted through a series of air lines and hoses to the brakes on the wheels of the vehicle.

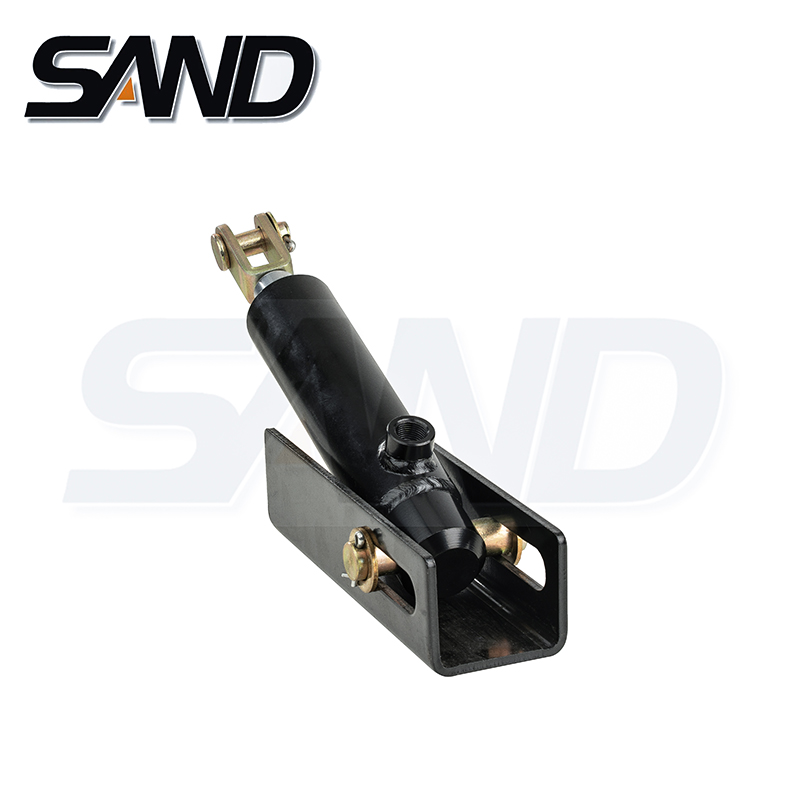

In hydraulic brakes, the brake chamber is a component that is connected to the brake pedal or lever. When the brake pedal is pressed, it pushes a fluid-filled piston into the brake chamber, which activates a fluid-filled cylinder inside the chamber. The pressure of the fluid is transmitted through a series of tubes and hoses to the brakes on the wheels of the vehicle, causing the brakes to engage.
Both air and hydraulic brake chambers are used to apply pressure to the brakes on a vehicle in order to slow it down or stop it. They are essential components in the braking systems of cars, trucks, buses, and other vehicles.
Air and hydraulic brake chambers play an important role in the braking systems of commercial vehicles such as trucks, buses, and trailers. These chambers are responsible for converting the energy from compressed air or hydraulic fluid into mechanical force that activates the brakes.
In air brake systems, the brake chamber is mounted on the vehicle's brake assembly and is powered by compressed air from the air brake system. When the driver applies the brake pedal, the compressed air enters the brake chamber, causing a diaphragm to move and apply force to the brake shoes or pads. This force then activates the brakes and slows down the vehicle.
In hydraulic brake systems, the brake chamber serves a similar function, but instead of compressed air, it is powered by hydraulic fluid. When the driver applies the brake pedal, hydraulic pressure is applied to the brake chamber, which then applies force to the brake shoes or pads, causing the vehicle to slow down or stop.
Overall, the air and hydraulic brake chambers are critical components of the braking system in commercial vehicles. They provide reliable and consistent braking performance, which is essential for the safety of drivers, passengers, and other road users.
Air and hydraulic brake chambers are essential components of braking systems in commercial vehicles. There are various standards and applications related to these brake chambers, which ensure their safe and effective operation. Here's an introduction to some of these standards and applications:
FMVSS 121: The Federal Motor Vehicle Safety Standard 121 (FMVSS 121) sets out the minimum performance requirements for air brake systems in commercial vehicles. This standard specifies the design, construction, and performance requirements for brake chambers, among other components.
SAE J1469: The Society of Automotive Engineers (SAE) J1469 standard defines the performance requirements for hydraulic brake chambers used in commercial vehicles. This standard covers the design, construction, and testing of hydraulic brake chambers to ensure their safe and reliable operation.
Application: Air brake chambers are commonly used in heavy-duty trucks, buses, and trailers, while hydraulic brake chambers are typically used in smaller commercial vehicles, such as vans and light-duty trucks. Brake chambers may be either single-diaphragm or double-diaphragm, with the latter offering greater braking force.
Maintenance: Regular maintenance of air and hydraulic brake chambers is crucial to ensure their safe and effective operation. This may include inspecting the diaphragm and housing for damage or wear, checking for leaks, and verifying the proper adjustment of the pushrod stroke.
In summary, air and hydraulic brake chambers are critical components of braking systems in commercial vehicles, and their proper design, construction, and maintenance are essential for safe and reliable operation. Standards such as FMVSS 121 and SAE J1469 help ensure that these components meet minimum performance requirements, while their application and maintenance are key considerations for vehicle manufacturers and fleet operators.
