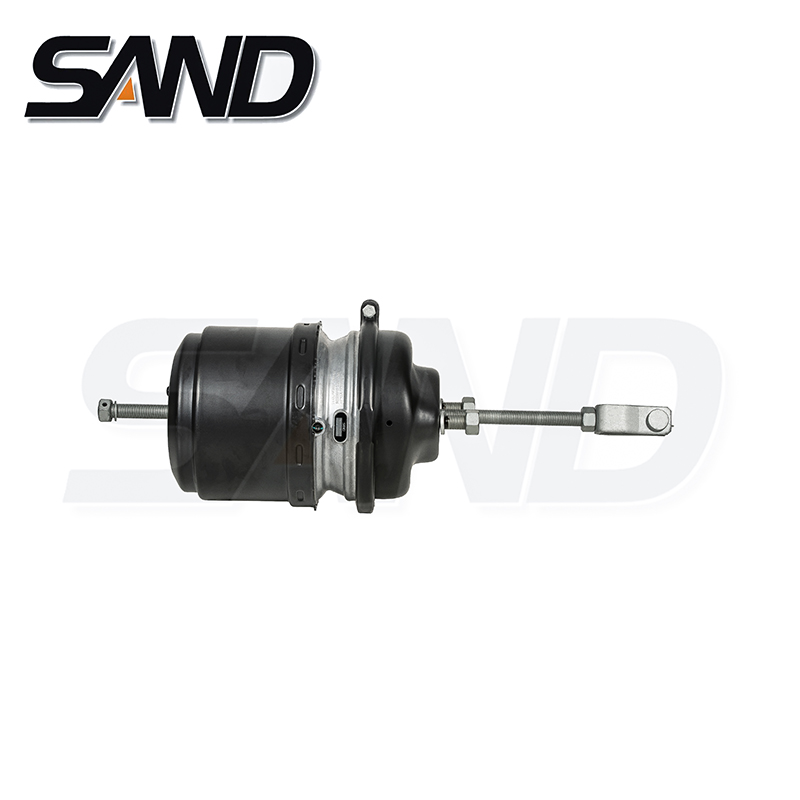

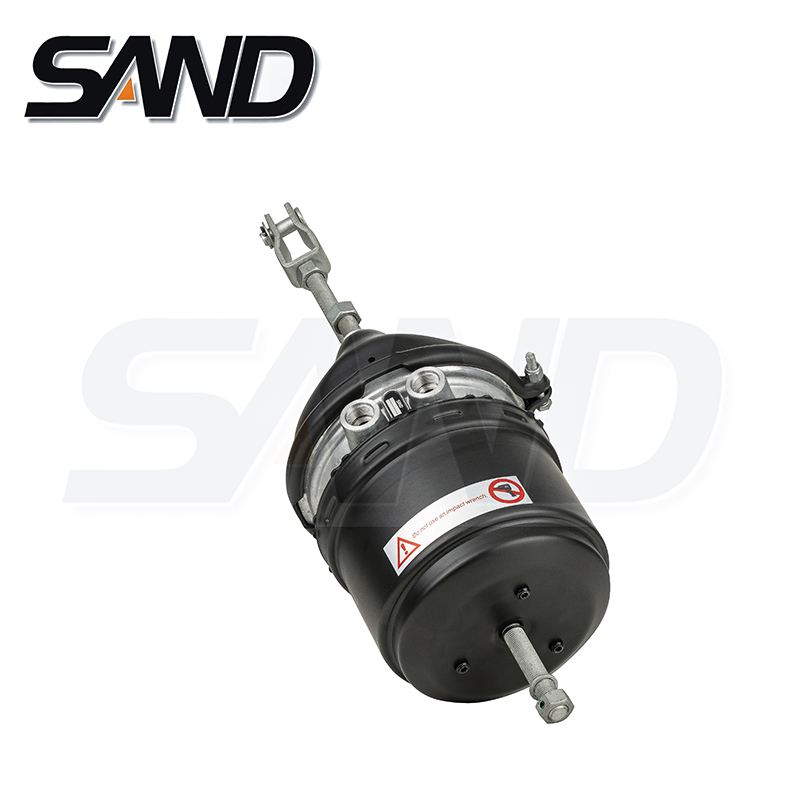

Regular Release T30 Rear Chamber
product
Regular Release T30 Rear Chamber
product

Regular Release T30 Rear Chamber

OE Number   :  9254911430; 9254990010; 9254921030; 9254520010; A0194208018
Suitable for   :  BENZ; DAF; VOLVO; SCANIA; RENAULT; MAN; IVECO; NEOPLAN
Parameters
TYPE SD NUMBER OE KNORR/WABCO PART NUMBER M α β F L1 L2 VEHICLE
Q24/30G SD96001 M22*1.5VOSS 0 -90 10800 260
SD96001N
9254911430
9254911437
A0194208018
 A0114207418
 A0084209818
070217100
1459614R
1270270
1608734
1935472
5021170337
505821722
-135 250
BENZ
NEOPLAN
DAF
VOLVO
SCANIA
RENAULT
KRONE
Q24/30GA SD97003 9254314210 M16*1.5 0 -90 10250 70
SD97003L 9254314220 1446053 75 135
SD97003A 9254911110  M22*1.5VOSS+T 0 -135 250±2
SD97003AL 9254314920 1523749 M16*1.5 15 -90 12000 70
SD97003AR 9254314910
9254314900
1523748
1446052
0 -90
Q27/30G SD96009
9254990010
9254990017
9254990020
ZG046390002
070215200
11013219
81504106280
1519174
1270273
1506563
1935478
503135324
5021170343
5021170342
M22*1.5VOSS+T 0 -135 10600 250±2
MAN     NEOPLAN     DAF
SCANIA    IEVCO  RENAULT
SD96009N01 9254990310
9254990330
7420736417
21015272
M16*1.5 50 247 RENAULT         VOLVO
SD96009A 77716686
2251527
220041010078
M22*1.5VOSS -90 12000 280
Q30/30G SD96002
9254921030
9254921037
9254921020 9254921027
1518313
1518149
0282042
1506395
81504106521
81504106679
11013227
070216300
8283696000
1935475
5000787260
5010485493
5001829102
6500691
1188390240
502968208
4131002
151447
1270263
660740
M22*1.5VOSS 0 -135 10800 250
BENZ
EVOBUS
DAF
IVECO
SCANIA
VOLVO
RENAULT
MAN
NEOPLAN   KOGEL
BENALU LIEBHERR DIMETAL
GOLDHOFFER  VDL
BUS
DENNIS
HOWO
SD96002N 9254520010 5021170338 M16*1.5 0 -135
  SD96002N33 9254920000 M22*1.5VOSS 30 33 MAZ
SD96002N07 9254922060 1/4NPTF 90 0 250
SD96002N08 9254922050 3/8NPTF
SD96002M 9254321150 1446059 M16*1.5 0 -135 10200 70
SD96002M01 9254321130 1446057 -38 90 215
SD96002M03 9254920020 20927128 0 -150 58 VOLVO
SD96002M13 9254322000 180 200
SD96002A 9254324400 10471795    1446066 -90 12200 70 SCANIA
SD96002N20 9254229050 M22*1.5VOSS 90 -135 10800 200

Leave a Message

Jiaxing Shengding Machinery Co., Ltd. originated from the core machinery team established by Sheng Zhonglin in 2003 and has gradually grown. It was re-registered and established in 2007. SAND has been adhering to the road of independent innovation for many years. All products are independently researched and developed, and new products are continuously introduced, becoming the first professional manufacturer of spring brake gas in the same industry in China.
Master first-hand information

News

product

Next Page

Views News

Product Knowledge

The Regular Release T30 Rear Chamber is an essential component of the air brake system in heavy-duty vehicles such as trucks, buses, and trailers. Designed to ensure reliable braking performance, this product combines a compact and cylindrical design with specific characteristics to enhance safety and functionality.It is specifically designed for the rear brakes and is typically positioned near the axle and wheel-end of the vehicle.It is connected to the brake actuating linkage and operates in conjunction with the rear brake shoes or pads.

With its T30 size classification, the Regular Release T30 Rear Chamber offers a precise capacity and stroke length that meets industry standards. It features a regular release mechanism that automatically disengages the brakes when the air pressure is released or depleted. This mechanism prevents brake dragging and unnecessary wear, promoting longevity and minimizing maintenance requirements.When the driver applies the brake pedal, the Regular Release T30 Rear Chamber receives compressed air from the air brake system.

The diaphragm and pushrod mechanism inside the chamber convert the air pressure into mechanical force, activating the rear brakes. This force is transmitted to the brake shoes or pads, causing them to engage the brake drum or disc and generate the necessary friction for deceleration or stopping.

Manufactured to ensure compatibility with a wide range of heavy-duty vehicles, the Regular Release T30 Rear Chamber adheres to industry regulations and standards. It undergoes rigorous testing to guarantee optimal performance, durability, and resistance to environmental factors.

The Regular Release T30 Rear Chamber is a vital component of the braking system, providing efficient braking control and contributing to the overall safety of heavy-duty vehicles. Its design, regular release mechanism, and compatibility make it an essential product for reliable and effective braking performance.
