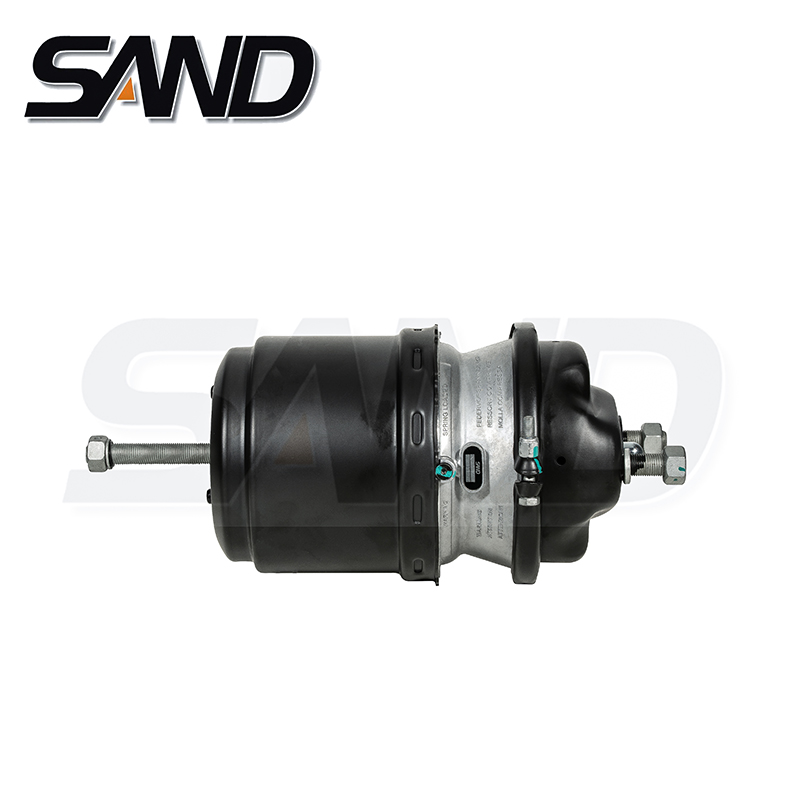

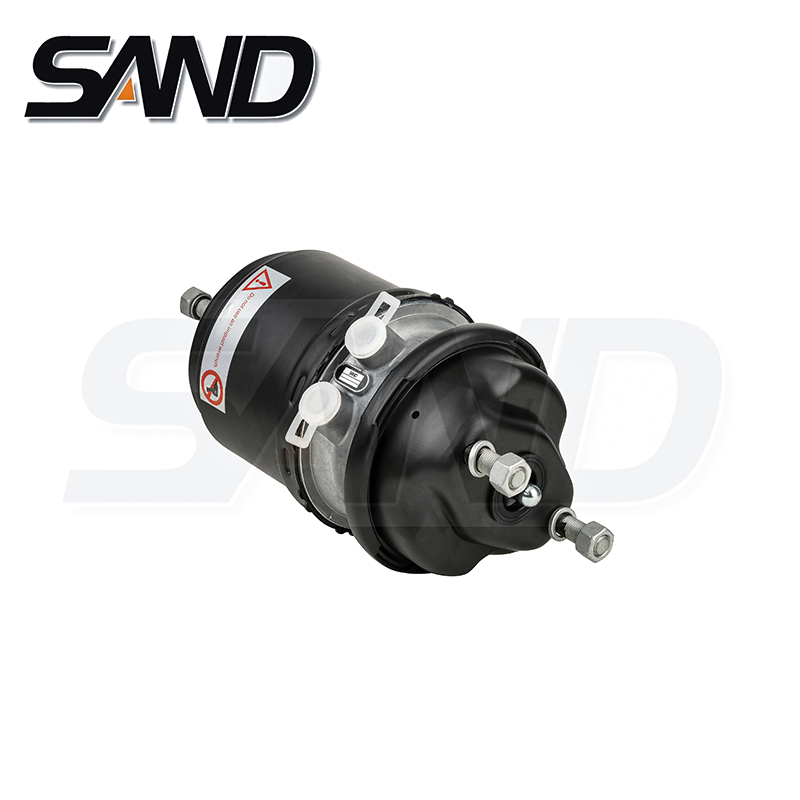

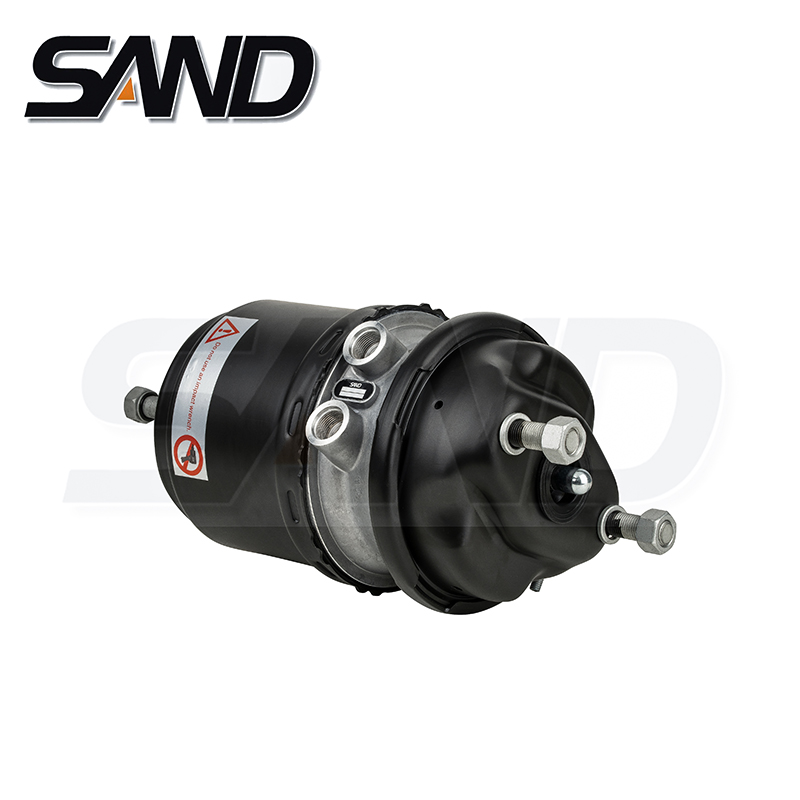

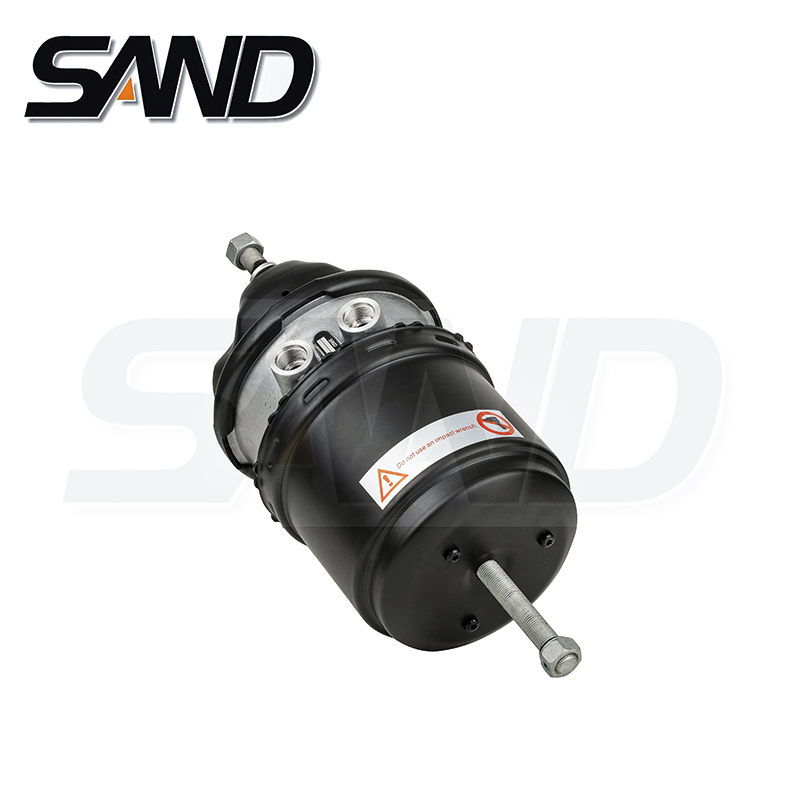

Long Stroke

OE Number : 9254601300; 9254602400; 9254812600; 9254610220
Suitable for : MAN; DAF

Detailed Drawing

Catalogue

Parameters

TYPE	SD NUMBER	OE KNORR/WABCO	PART NUMBER	M	α	β	F	L	VEHICLE
Q20/24PL	SD07005	9254601300	81504106820 1518159	M22*1.5VOSS	0	180	9100	20	MAN DAF
	SD07005N	9254602370			0	-90			MAN DAF
	SD07005N01	9254602300			-45	-90
Q20/24PL3	SD07701	9254602400		M22*1.5VOSS	0	180	9100	20
Q24/24PL	SD07004	9254812600 9254610240 9254610260 9254611540	21115362 20535924	M22*1.5VOSS	0	180	9100	20
Q24/24PL	SD07004N01	9254610220	81504106714 81504106804	M22*1.5	107	107	9100	20	MAN
