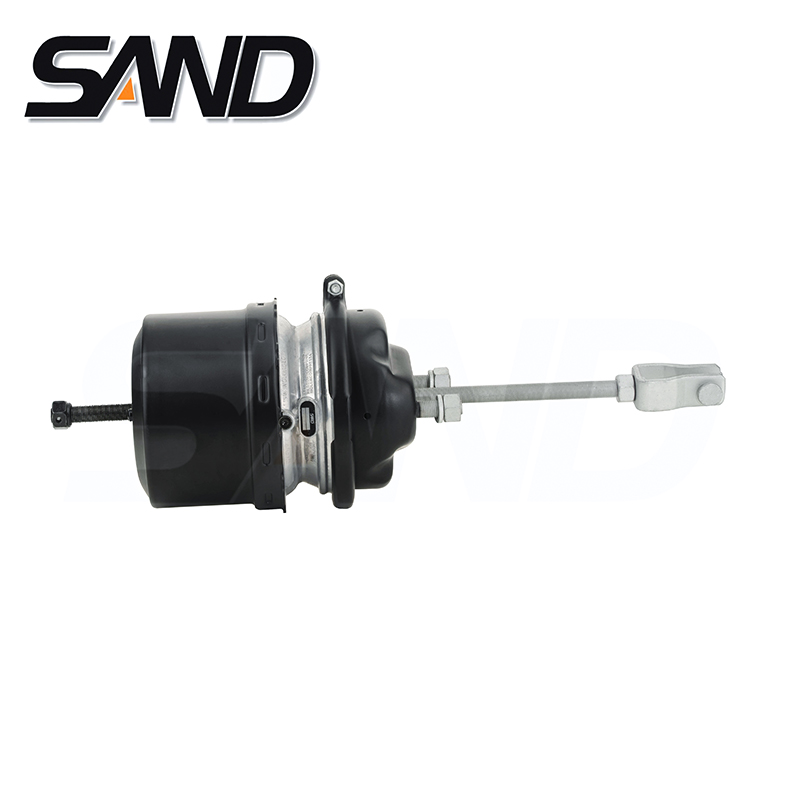

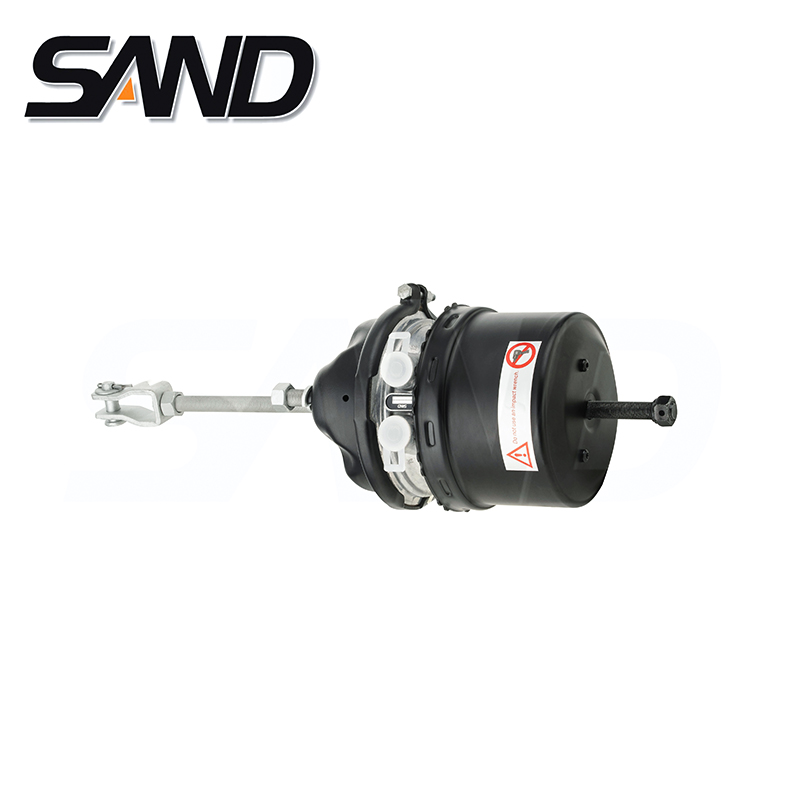

Regular Release T24 Rear Chamber

OE Number : 9254981050; 9254909250; 9254911410; 9254990000; 9254921010
Suitable for : DAIMLER; DAF; SCANIA; BENZ; MAN; RENAULT; IVECO; VOLVO

Detailed Drawing

Catalogue

Parameters

TYPE	SD NUMBER	OE KNORR/WABCO	PART NUMBER	M	α	β	F	L1	L2	VEHICLE
Q14/24G	SD96010	9254981050 9254981057 9254281000	1523961 A0164200618	M22*1.5VOSS	0	-135	7750	253		DA DAIMLER
Q16/24G	SD96003	9254940410 9254949600 9254941080	1518151 1802696 1331410 1117755	M22*1.5VOSS	0	-135	7800	250		DAF SCANIA KOGEL LIEBHERR
Q20/24G	SD96004	9254909250 9254909257 9254901020 9254901027	1506797 1935470 1519443 5021170332 5021170339 02486891 8285454000	M22*1.5VOSS	0	-135	7800	250±2		BENZ DAF MAN SCANIA RENAULT IVECO EVOBUS
Q20/24G	SD96004A	9254907550 9254907557		M22*1.5VOSS	0	45	8750	250±2
Q24/24G	SD96005	9254911410 9254911417 9254911420	85504106002 070214800 1518145 1506655 4778653 1935399 1935471 5021170336 6500690 157894 190615 190576	M22*1.5VOSS	0	-135	8000	250		MAN NEOPLAN DAF IVECO EVOBUS SCANIA RENAULT KOGEL GOLDHOFER VDL BUS
	SD96005N	9254310330 9254310337 9254310630 9254310470	1446042 571778 1313821 1505115R	M16*1.5	0	-90			70	SCANIA DAF
	SD96005N10	9254310380	1446045		-38	180			215	SCANIA
	SD96005N07	9254310410	1731941 1446046		-50				260	SCANIA VOLVO
	SD96005N08	9254310400	1731942		50				260	VOLVO SCANIA
			4006517760 S49U0-E0330		0	135				HINO
	SD96005A	9254917550	8285375000 81504109476 81504106345 81504106519 81504109552 1523549	M22*1.5VOSS	0	45	8900	250		EVOBUS MAN DAF NEOPLAN
Q27/24G	SD96007			M22*1.5VOSS	0	-135	8000	250
	SD96007N	9254990000 9254990007	1506761 1935477 5021170344	M16*1.5		-135				MAN DAF SCANIA
	SD96007N01	9254990030 9254391100	20533210 20466200	M16*1.5		25
Q27/24GA	SD97002	9254990710 9254990700	7421149777 21149785	M16*1.5	0	50	11000	220±2		VOLVO RENAULT
Q30/24G	SD96008	9254921010 9254921017	879088R ESBCU2599 1935474 25141128	M16*1.5	0	-135	8000	250		DAF VOLVO SCANIA RENAULT
	SD96008N	9254922070		M22*1.5VOSS+T	0	-135	8000	250		DAF VOLVO SCANIA RENAULT
	SD96008N01	9254320220	1446056 1367493 46460-6x4 6520-6x4 5297-4x2	M16*1.5	0	180			70	SCANIA KAMAZ
	SD96008A	9254921000 9254921007	1935473	M16*1.5	0	-135	8900	250		SCANIA
