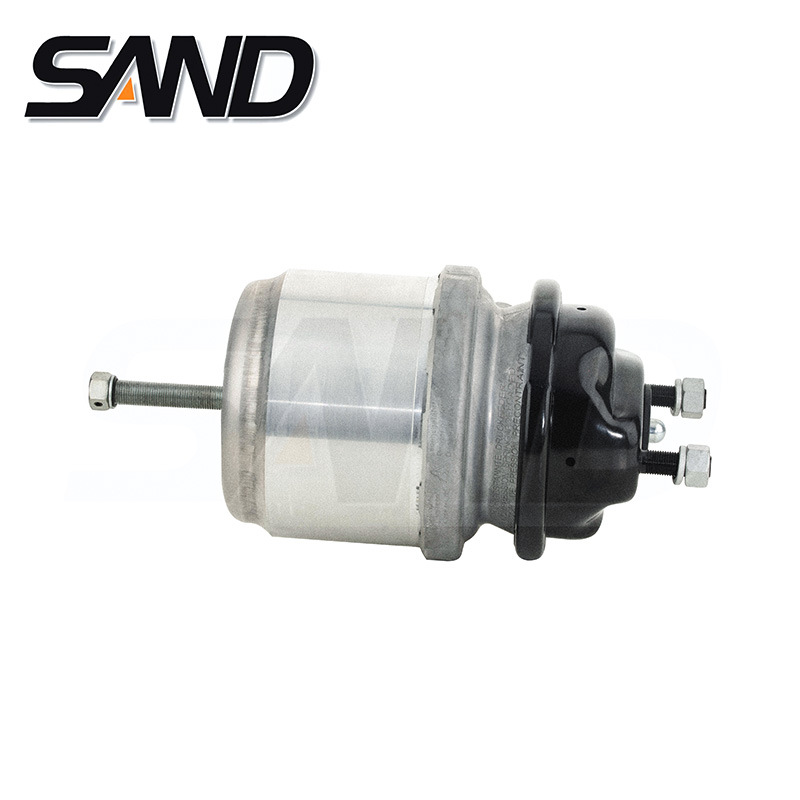

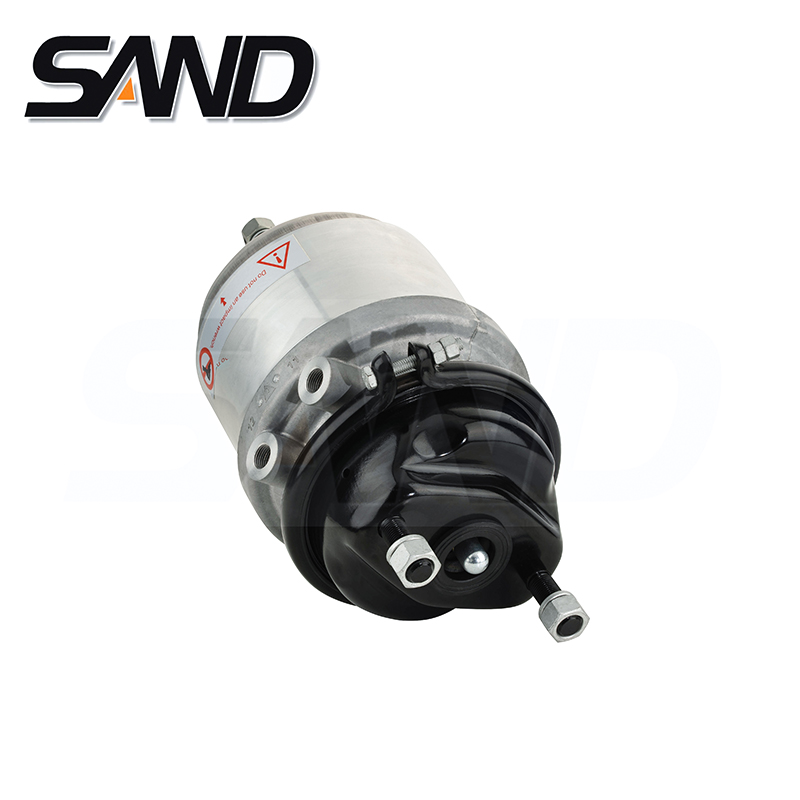

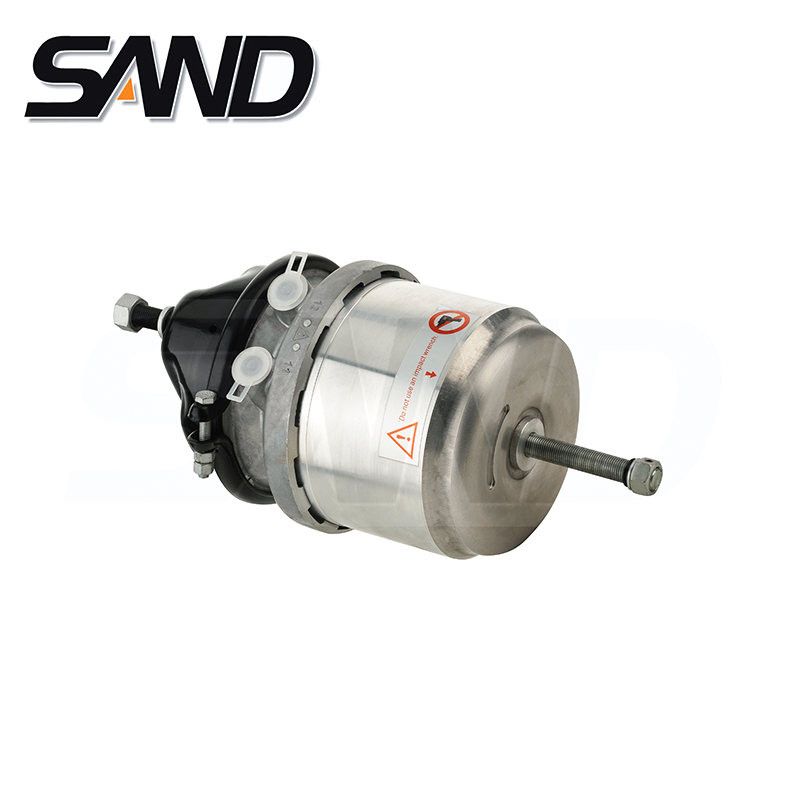

Long Cylinder

OE Number : BS8328; BS8320; BS8428; BS9535; 504051703; 81.50410.6868
Suitable for : MAN; IVECO

Detailed Drawing

Catalogue

Parameters

TYPE	SD NUMBER	OE KNORR/WABCO	PART NUMBER	M	α	β	F	L	VEHICLE
K16/24PA	SD07K01			M22*1.5VOSS	0	45	8900	15
K16/24PA	SD07K01N01	BS8328-K002097	81.50410.6840	M22*1.5VOSS	-90	-150	8900	15	MAN
K16/24PA2	SD07K21			M22*1.5VOSS	0	45	8900	15
	SD07K21A01	BS8320-K001181	504051703	M16*1.5	-45	-135	10560		IVECO
	SD07K21A03	BS8325-K001901	504072802	M16*1.5	70	135	10560		IVECO
K20/24PA	SD07K02			M22*1.5VOSS	0	45	8900	15
	SD07K02N01	BS8435-K007676			-107	-107			MAN
	SD07K02N03	BS8413-K007668	81.50410.6868 81.50410.6810		45	45
	SD07K02A01	BS8426-K001970	81.50410.6829		-45	-90	10500
	SD07K02A03	BS8428-K001977	81.50410.6831		-60	-90	10500
K24/24PA	SD07K03	BS9535-II37468	36.50410.6003 0501317127	M22*1.5VOSS	0	45	9000	15	MAN
K24/24PA	SD07K03N	BS8589-K080028		M22*1.5VOSS	-90	-135	9000	15
