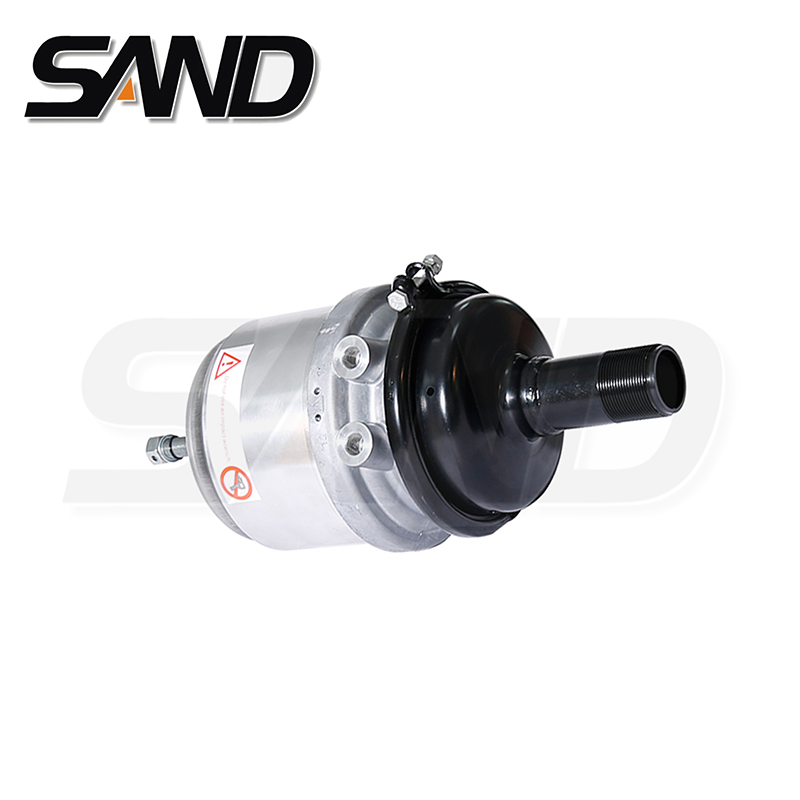

J-Series Long Cylinder

OE Number : BY9225; BY9328; BY9331; BY9276; BY9331
Suitable for : IVECO; IRISBUS

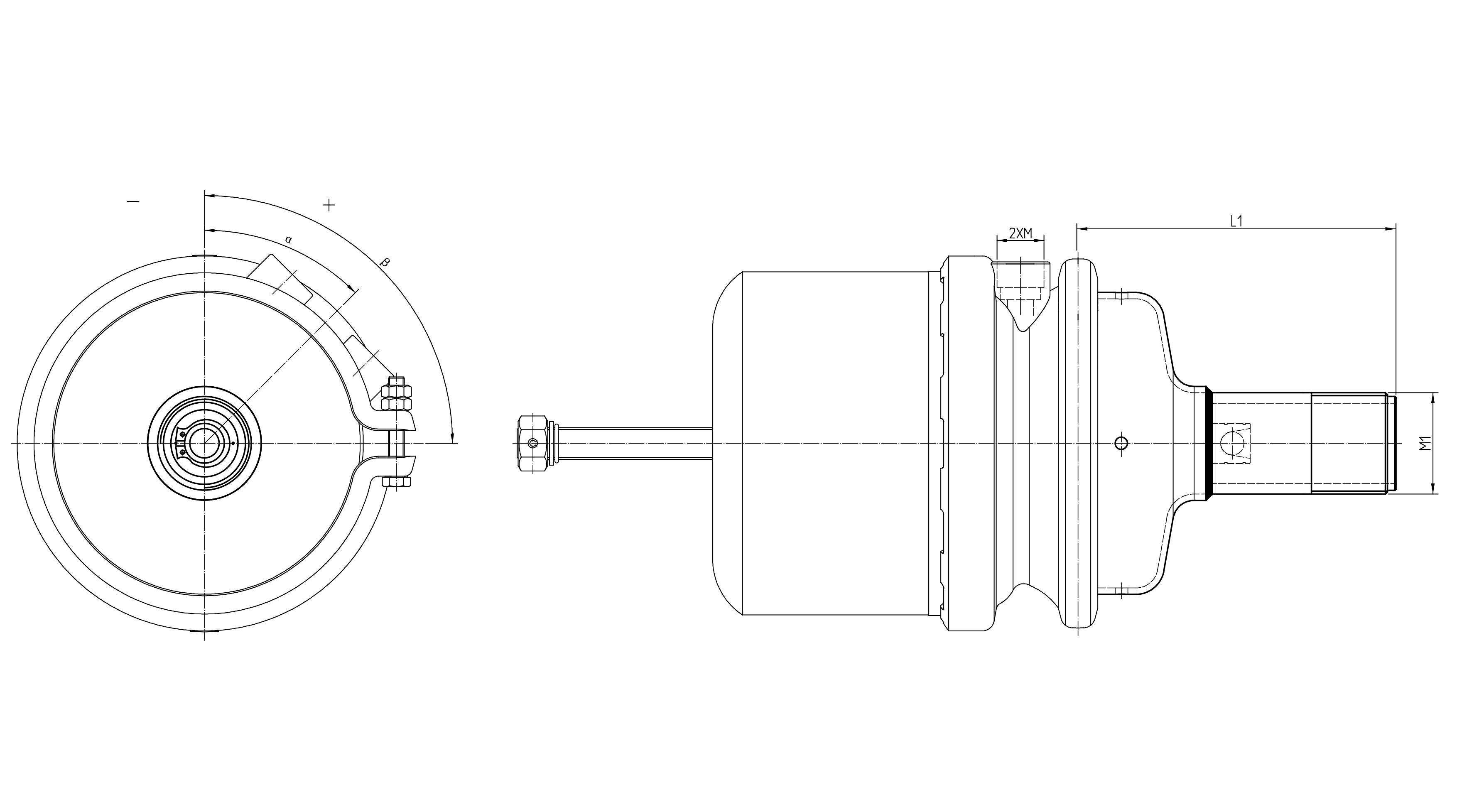

Detailed Drawing

Catalogue

Parameters

TYPE	SD NUMBER	OE KNORR/WABCO	PART NUMBER	M	α	β	F	L1	M3	VEHICLE
Regular Release
K12/20JA	SD373KJ	BY9225-II36537	K090760N	M16*1.5	0	60		157	3/4"-12UNS	IEVCO
	SD373KJ01	BY9230-II39595F	504007758 08174494			-135		177	M48x2	IRISBUS IEVCO
	SD373KJ02	BY9236-K003865	98446265			-135		157	3/4"-12UNS	IEVCO
K14/24JA	SD371KJ	BY9328	02.1424.70HF 718279	M22*1.5VOSS	0	135		160	M48*2	IVECO
K14/24JA	SD371KJ01	BY9272-II39358F	4121 1077	M16*1.5	0	135		160	M48*2	IVECO
K16/24JA	SD372KJ	BY9328-K014032 BY9328-II39229	41285153 718280	M16*1.5					M48*2	IRIS BUS IVECO
K16/24JA	SD372KJ01	BY9331-K014030 BY9328-K001059	41285153 718281
Quick Release
K14/24JA2	SD271KJN01		BDW6801424	M22*1.5VOSS	0	135	9600	161
K14/24JA2	SD271KJN02	BY9276-K001057	4121 1359	M16*1.5	0	135	9600	160	M48x2
K16/24JA2	SD272KJN01			M22*1.5VOSS	90	-135	9700
	SD272KJN02		77723790	M16*1.5	90	180
	SD272KJN03	BY9331-K014030	41285151 41285152	M16*1.5	0	135			M48x2	IVECO
