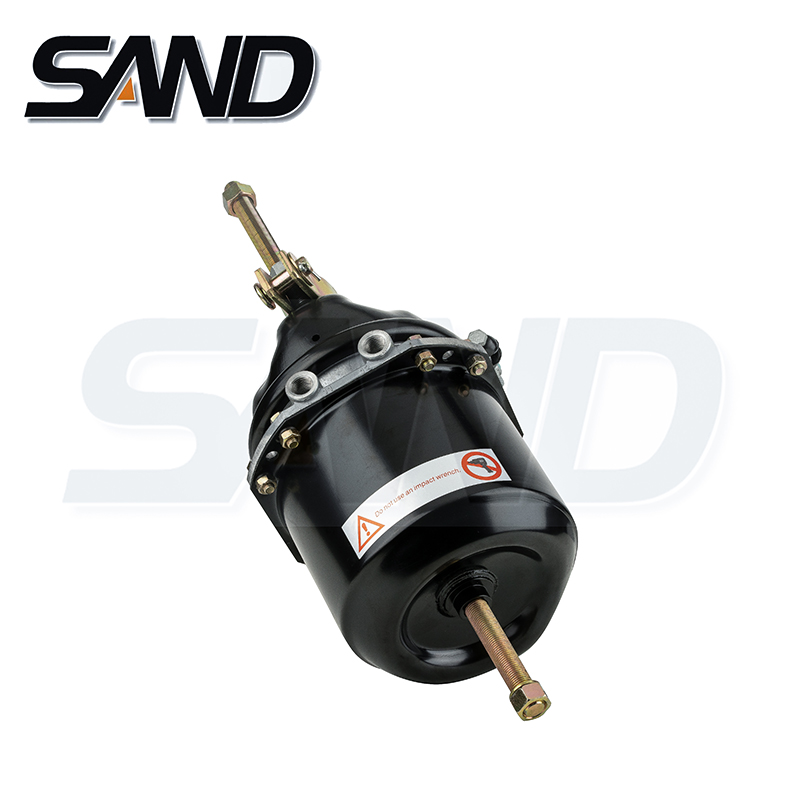

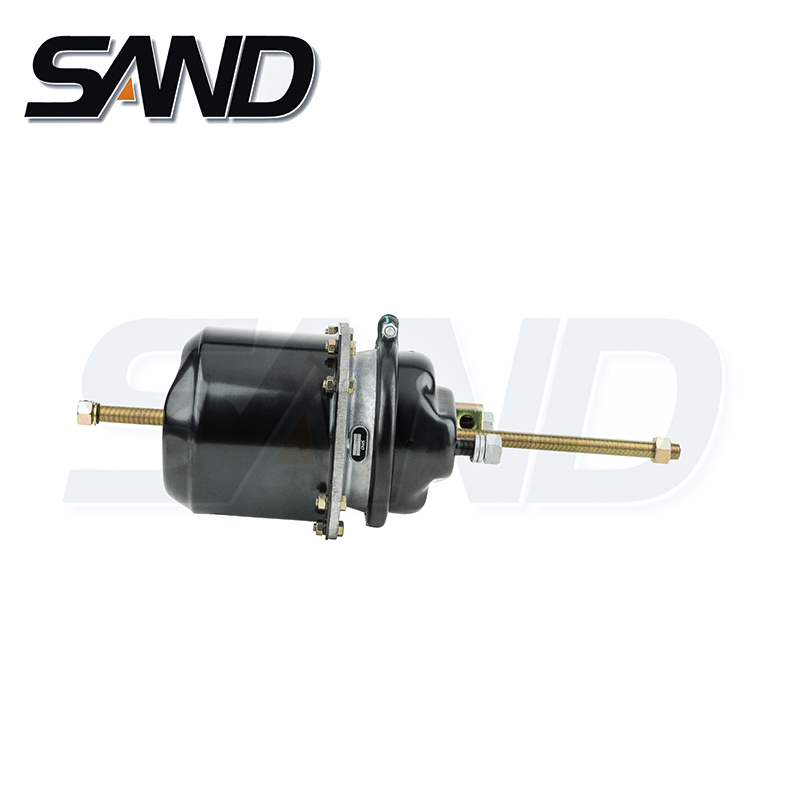

Old Version
product
Old Version
product

Old Version

OE Number   :  9253240000; 9253211600; 136410030; 35304902040
Suitable for   :
Parameters
TYPE SD NUMBER OE KNORR/WABCO PART NUMBER M α β F L1 L2
H16/24G SD95002 M16*1.5 0 -90 8700 270
SD95002W 9253240000 0 45 187
H20/24G SD95003 M16*1.5 0 -90 8700 260
H24/24G SD95004 M16*1.5 0 45 8700 260
SD95004N 9253211600 -135 187
SD95004N01 9253212020 M22*1.5 0 290
SD95004N05 HLP3502041CK7ME M16*1.5 0 140
SD95004N08 CH8H8-35300001 -40 65
H27/24G SD95014 M16*1.5 -54 45 8700 260
H30/24G SD95006 M16*1.5 0 180 8700 260
SD95012N01 CH3530KBG010B0 -40 0 65
SD95012N02 CH3530KBG020B0 40 65
SD95012N03 CH3530KBG030B0 NPT3/8 -40 65
SD95012N04 CH3530KBG040B0 40 65
SD95012N11 136 410 030 0 40 180
SD95012N12 136 410 040 -40 180
H24/30G SD95005 M16*1.5 0 45 9100 265
H27/30G SD95009 M16*1.5 0 -65 9100 65
SD95009N 0 45 245
H30/30G SD95007 M16*1.5 0 45 9100 250
SD95007N01 3530 490 204 0              -40 65
SD95007N02 3530 490 205 0 40 65
H36/30G SD95013 M16*1.5 0 90 9100 235
