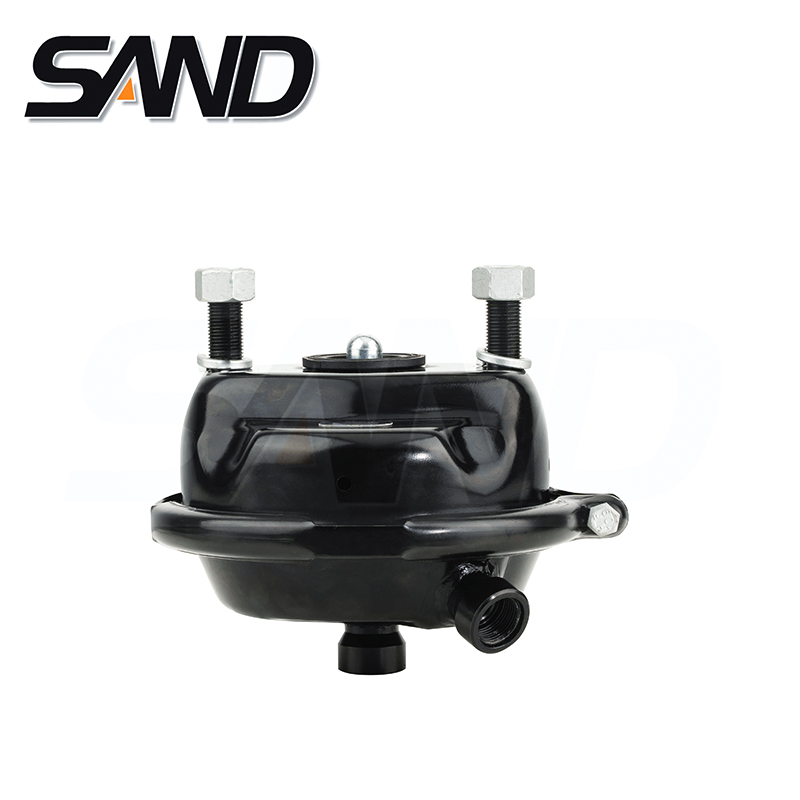

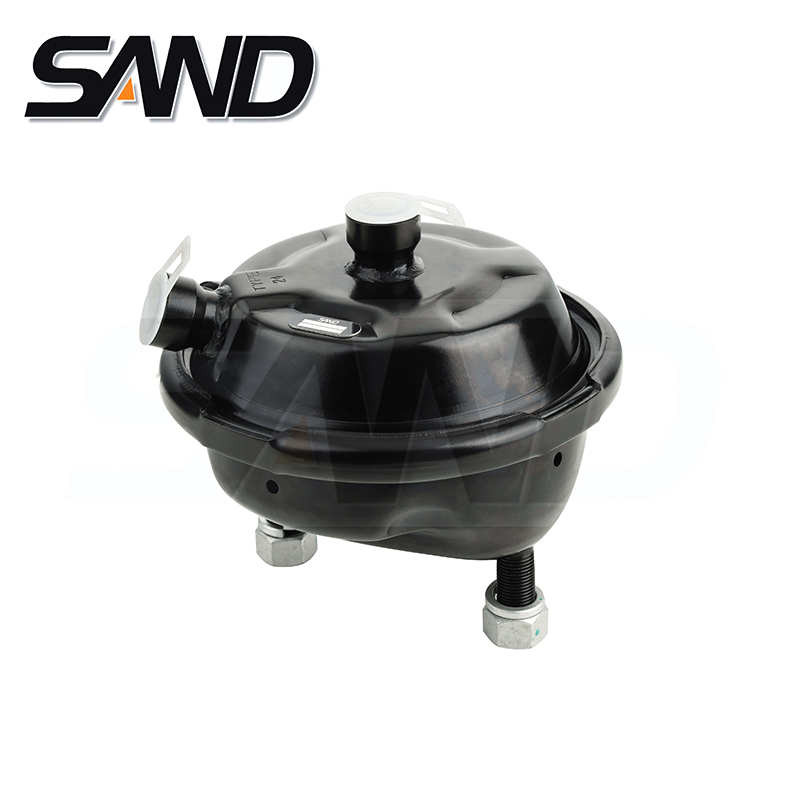

Double Ports Brake Chamber-Disc
product
Double Ports Brake Chamber-Disc
product

Double Ports Brake Chamber-Disc

OE Number :  4231047100; 4235050000; 0544432010; BS3514; BS3602
Suitable for :  BPW; SAF; DAIMLER; BENZ; DAF; IVECO; SCANIA
Parameters
TYPE SD No. Cross Ref No. Ref No. S
STROKE
M1
side  port
M2
centre port
α
Port
β
Clamp
L
Length
Vehicle
12P2 SD01005D BS3202-II37861
ABRA302,
1402533
64 M16*1.5 M16*1.5 0 90 15 DAF;IVECO
SD01005D01 BS3201-II36967 4031955 -45
SD01005D04 4235030000 1392259 M16*1.5+D 180
14P2 SD01006D 4231147100
0544430020   0544430010
0203276800   0203276900
1505244              1932638
64 M16*1.5 M16*1.5+D 0 -20 15 BPW  DAF  SCANIA
SD01006D02 4235140200 1373676 180 DAF
SD01006D03 BS3257-II36968 41031956 M16*1.5 45
16P2 SD01001D 4231047100
A0064205224
0074207424  0054202934
1505241              1932621
0203277000
0544432010   0544432020  3454106560
334652           505812866
AJV4526
64 M16*1.5+D M16*1.5 0 -20 15 BENZ;DAF;SCANIA;
BPW;SAF;KOGEL;
KRONE;FRUEHAUF
SD01001D01 M16*1.5 M16*1.5+D 45 0
SD01001D02 220090012 M22*1.5(VOSS) M22*1.5(VOSS)
SD01001D06 4235040300
68323850
20361830
M16*1.5 M16*1.5 90 -45
18P2 SD01007D BCD6001800    64 M16*1.5 M16*1.5+D 45 0 15
SD01007D01 4231127100 544433010 0 -20
SD01007D03 BS3354-II36778 41031958 M16*1.5 45
20P2 SD01002D 4235050000
BK8503404     A0074201224
1517954
1932639
0203277500
0544434010
0544434020
3454106760
3454108260    4454106760
337900
64 M16*1.5 M16*1.5+D 0 -20 15
BENZ;MAN;DAF;
SCANIA;BPW;SAF
 SAUER;KOGEL
SD01002D01 4235050040 718192           4454106700 M16*1.5+D M16*1.5 90 -90
SD01002D10 4235051900 M16*1.5 M16*1.7+D 150 90
SD01002D22 220090014 M22*1.5VOSS M22*1.5VOSS 45 0
22P2 SD01008D 4231107100
0544435010    0544435020
0203277700 0203277600
A0074201324
2121531
1932635
64 M16*1.5 M16*1.5+D 0 -20 15 BPW;SAF;DAIMLER
SD01008D01 64 M16*1.5 M16*1.5+D 45 0
SD01008D02 BS3458-II36780 41031960 M16*1.5 0 45
24P2 SD01003D
4235060010
4235060070
A0074201424   1517956
500590336
1932640
0203277800     0203277900
0544436010     0544436020
3454106960     337902
10218884
64 M16*1.5 M16*1.5+D 0 -20 15
BENZ;DAF     IVECO;SCANIA
BPW;SAF/SAUER
 KOGEL;LIEBHERR
SD01003D08 718193 M16*1.5+D M16*1.5 -45 0
SD01003D01 220090014 M22*1.5VOSS M22*1.5VOSS 45
SD01003D32 BS3514 M22*1.5VOSS M12*1.5 30
SD01003D33 BS3515 A0084201124   A0084206624 -30
SD01003D34 BS3522      BS3516 0 -90
SD01003D81 F-DB01 Z3/8 Z3/8 45 90
27P2 SD01010D BCD6002700 64 M16*1.5 M16*1.5 45 0 15
30P2 SD01004D 64 M16*1.5 M16*1.5+D 45 0 15
SD01004D01 BS3602 A0084201824   A0064201824 M22*1.5VOSS M22*1.5 0 -90

Leave a Message

Jiaxing Shengding Machinery Co., Ltd. originated from the core machinery team established by Sheng Zhonglin in 2003 and has gradually grown. It was re-registered and established in 2007. SAND has been adhering to the road of independent innovation for many years. All products are independently researched and developed, and new products are continuously introduced, becoming the first professional manufacturer of spring brake gas in the same industry in China.
Master first-hand information

News

product

Next Page

Views News

Product Knowledge

A Double Ports Brake Chamber, also known as a dual-port brake chamber, is a component commonly used in the braking system of heavy-duty vehicles such as trucks, buses, and trailers. It is an essential part of the air brake system.

The brake chamber is responsible for converting the air pressure generated by the brake system into mechanical force that applies the brakes. It consists of a housing with a diaphragm, a pushrod, and two air ports.

The two ports allow for the connection of separate air lines or hoses from the brake system. In the event of a failure or leakage in one air line, the other port ensures that there is still sufficient air pressure to activate the brakes and maintain braking performance.

In a disc brake system, the brake chamber is responsible for converting the air pressure into mechanical force to actuate the brake calipers, which then apply the brake pads onto the brake discs.

Having a double port configuration on the brake chamber in a disc brake system might indicate the presence of two separate air ports or connections for hydraulic lines. This design could provide advantages such as improved hydraulic fluid flow, enhanced response time, or redundancy in case of a failure or leakage in one of the ports. The double ports can allow for a more efficient distribution of hydraulic pressure, potentially resulting in improved braking performance.This redundancy enhances safety and helps prevent total brake failure in case of a single air line malfunction.
