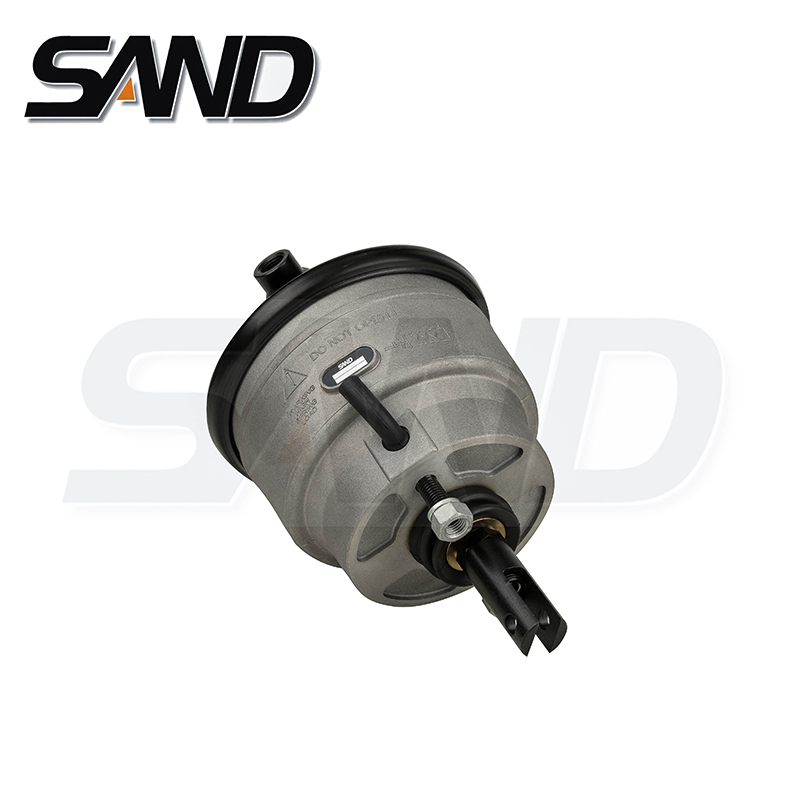

K20G

OE Number : DPA5001-K028253; DPA5000-K026832; DPA6102-K028266
Suitable for : IVECO; DAIMLER; VOLVO

Detailed Drawing

Catalogue

Parameters

TYPE	SD Number	OE KNORR/WABCO	PART NUMBER	M	α	β	L2	VEHICLE
K20G	SD6C001N			M16*1.5	0	45	86
K20G	SD6C001	DPA5001-K028253	1186753 504191315 98403526 04842678	M16*1.5	0	-135	137	IVECO
K20GA	SD6C002	DPA6101-K026831	1186754 504191316 98403527 04842679	M16*1.5	0	-135	137	IVECO
K20G	SD6C003	DPA5000-K026832	1189449 0024310314	M22*1.5VOSS	0	-45	137	DAIMLER
K20GA	SD6C004	DPA6100-K026831	1189458 0024310414	M22*1.5VOSS	0	-45	137	DAIMLER
K20GA	SD6C005N			M16*1.5	0	/	86	VOLVO
K20GA	SD6C005	DPA6102-K028266	1188823 21267407 6795988	M16*1.5	0	/	137	VOLVO
K20GA	SD6C006	DPA6103-K028300	1194406	M16*1.5	0	/	137	IVECO
K20G	SD6C007	DPA5002-K028465	1188824	Z1/4	0	/	137	IVECO
