F-Series
product

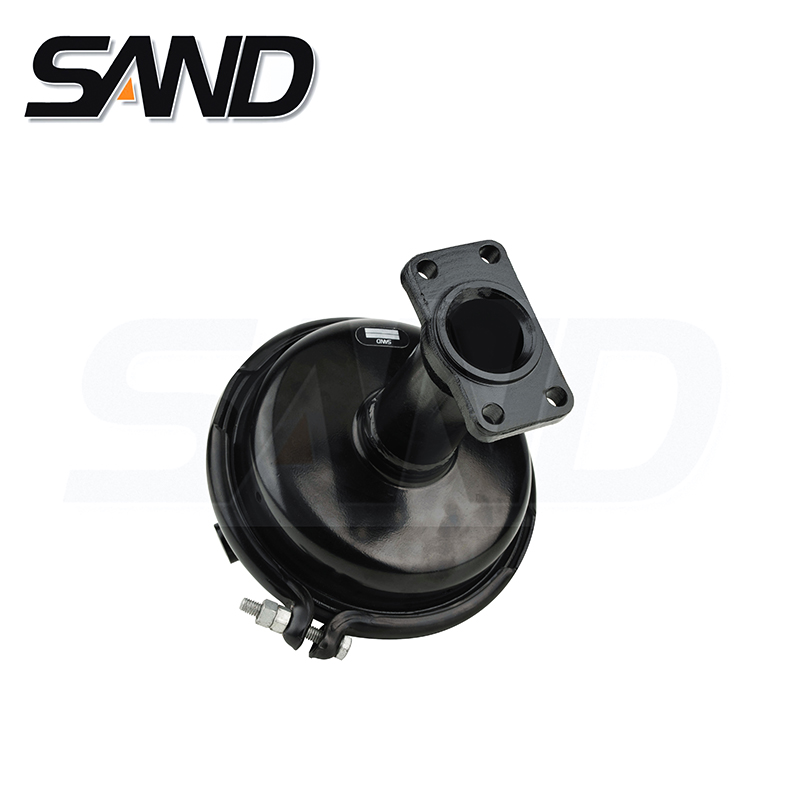

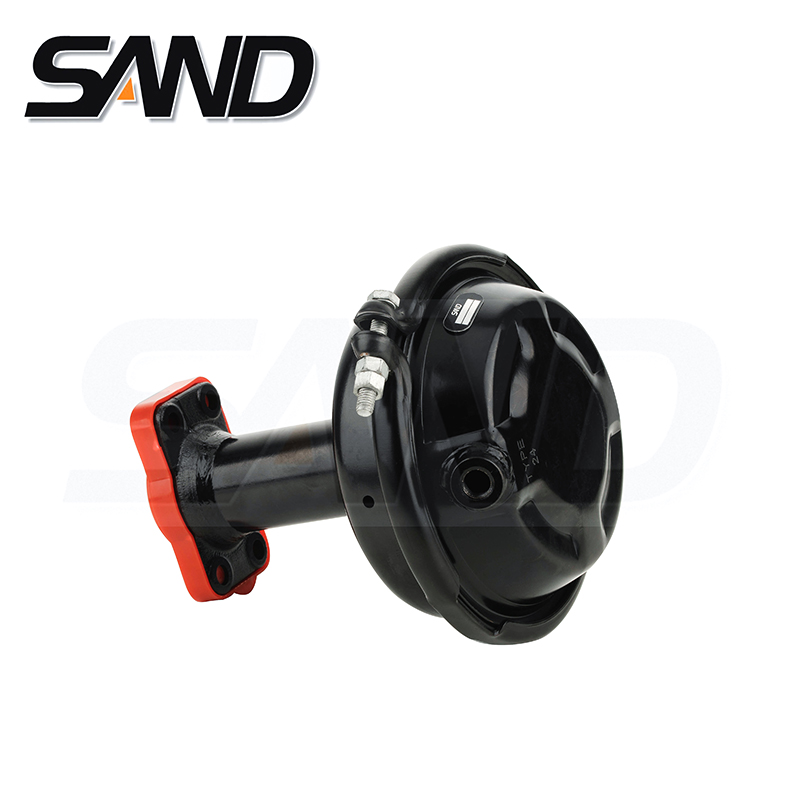

F-Series
product

F-Series

OE Number   :  4230701200; 4230760200; 4230760230; 47830-3410
Suitable for   :  HINO
Parameters
TYPE SD NUMBER OE KNORR/WABCO PART NUMBER M Side Port α β L1 L2 VEHICLE
12F SD31008L 4230701200 M16*1.5 -50 -140 165
SD31008R 4230701210 M16*1.5 50 140 165
24F SD37001 4230760200 47830-3410 RC3/8 0 180 178
SD37001R 4230760210 47830-3420 RC3/8 -90 90 178
SD37001L 4230760220 47830-3430 RC3/8 90 -90 178
SD37001NR 4230760230 47830-3440 RC3/8 -45 90 178
SD37001NL 4230760240 47830-3450 RC3/8 45 -90 178
30F SD37002 Z3/8 0 45 177 HINO 420(front)
