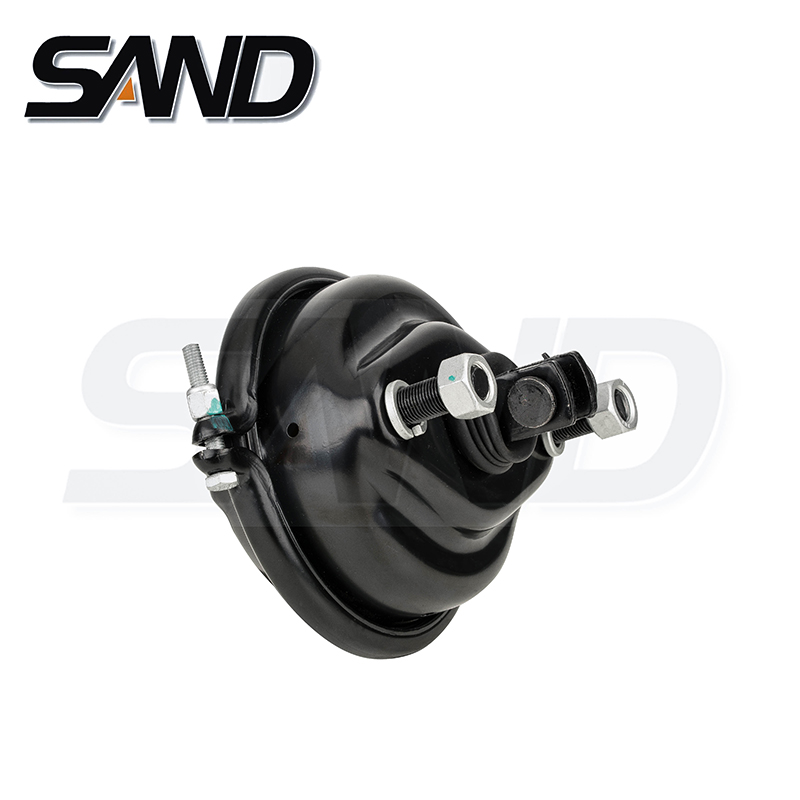

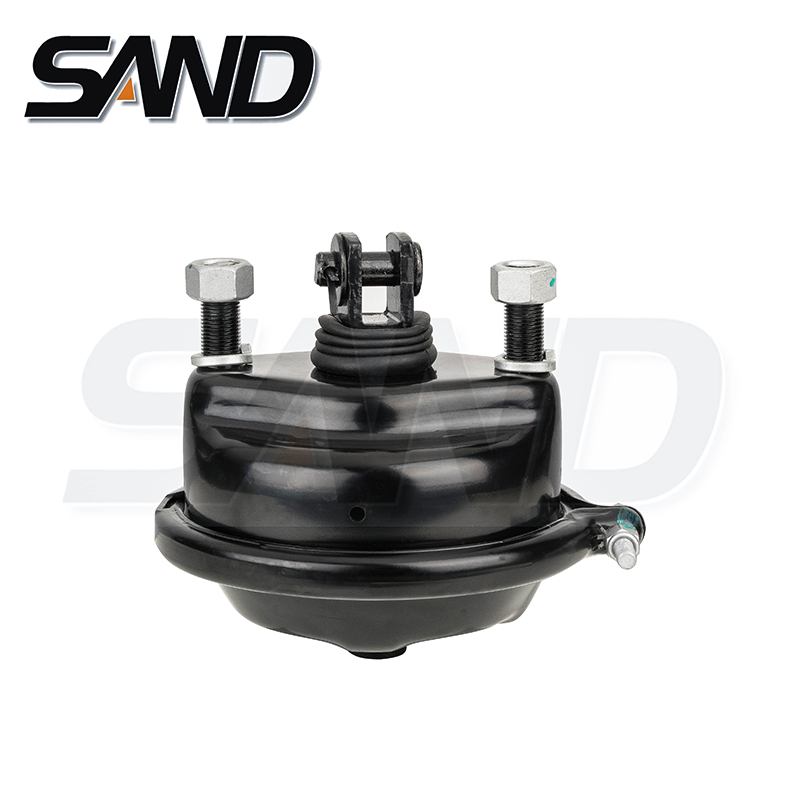

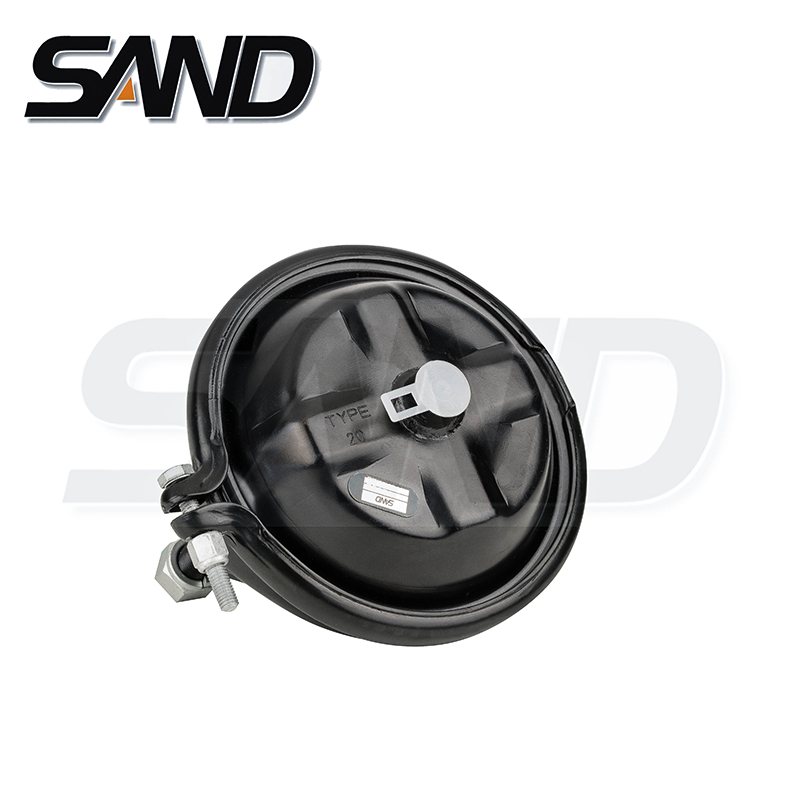

Welded

OE Number : 4231051110; 4231061060; BZ3480; BZ3533; 4231074070
Suitable for : BENZ; MAN; DAF; SCANIA; DAIMLER; RENAULT; EVOBUS

Detailed Drawing

Catalogue

Parameters

TYPE	SD NUMBER	OE KNORR/WABCO	PART NUMBER	STROKE	M1	M2	α	β	L	VEHICLE
20W	SD92002W	4231051110 BZ3480 BZ3464,	0004207624 MBU5172 1505026, 0054202018 0064209418, 0074203218, 0074208918, 0074208924, 0074208718, 0074209718, 81511016196, 81511019196, 5021170048, 345048001, I77743, I77743AT,	57	/	M16*1.5	/	0	37	BENZ;EVOBUS;MAN DAF;RENAULT
24W1	SD92004W	4231061060 BZ3533, BZ3534, BZ3537, BZ3538, BZ3539, BZ3540, BZ3545, BZ3555,	1505240, 81511016104, 81511016105, 81511016110, 81511016111, 81511016114, 81511016115, 81511019104, 5021170050, 5000464005, 5000464006, 080240000, 0004208924, 0004209024, 0074209018, 0074209118, 1932627, 345019001, I61131, I77744AT	57	/	M16*1.5	/	0	37	DAF;MAN;RENAULT NEOPLAN;DAIMLER SCANIA
27WL	SD91009W	4231091020	81511016455;81511019455 1932633	75	/	M16*1.5	/	0	37
30W	SD92003W	4231074070	A0064200824 A0084207124	64	M12*1.5	M16*1.5	-30	-30	37
