Long Stroke

OE Number : BS9433-II36962; BS9484-II38570F; BS8415-K007670; 81.50410.6733
Suitable for ： MAN

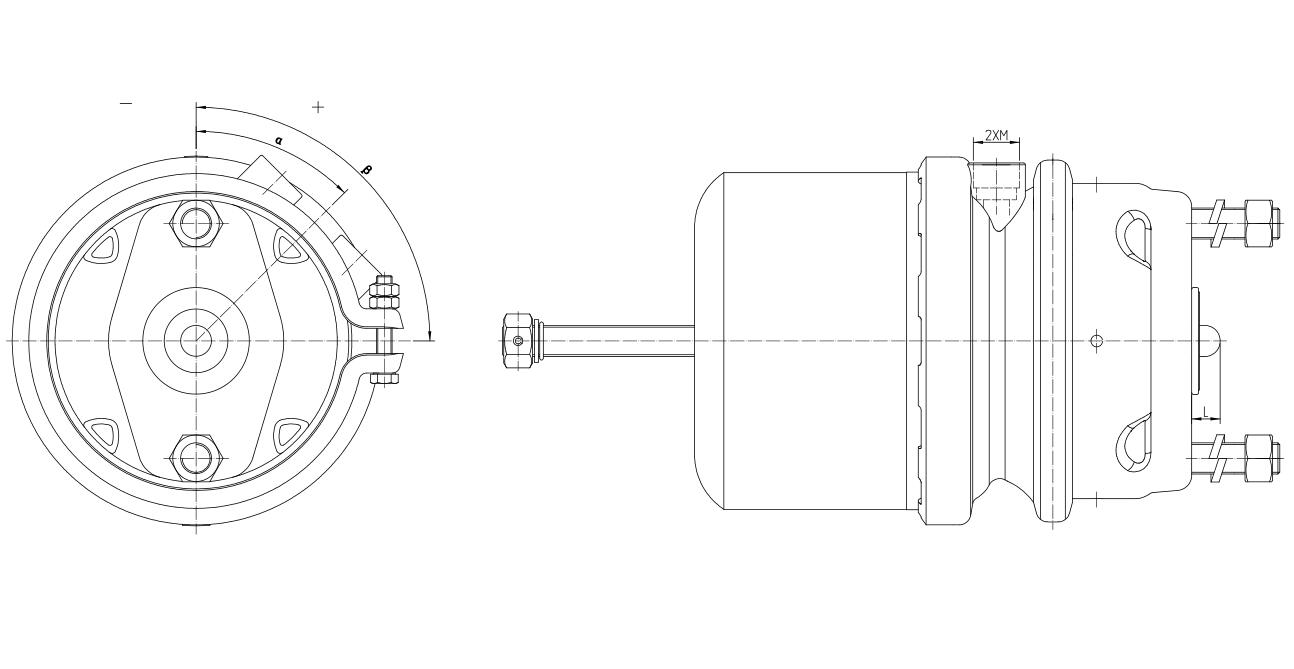

Detailed Drawing

Catalogue

Parameters

TYPE	SD NUMBER	OE KNORR/WABCO	PART NUMBER	M	α	β	F	L	VEHICLE
K20/24PL	SD07K07			M22*1.5VOSS	90	180	8800	20
	SD07K07N01	BS9433-II36962	81.50410.6733	M22*1.5VOSS	-45	-45	8800	20	MAN
	SD07K07N02	BS9434-II36972	81.50410.6732	M22*1.5VOSS	45	45	8800	20	MAN
	SD07K07N07	BS9484-II38570F	81.50410.6767	M22*1.5	0	135	8800	20	MAN
	SD07K07N08	BS8415-K007670	81.50410.6913	M22*1.5	0	180	8800	20	MAN
