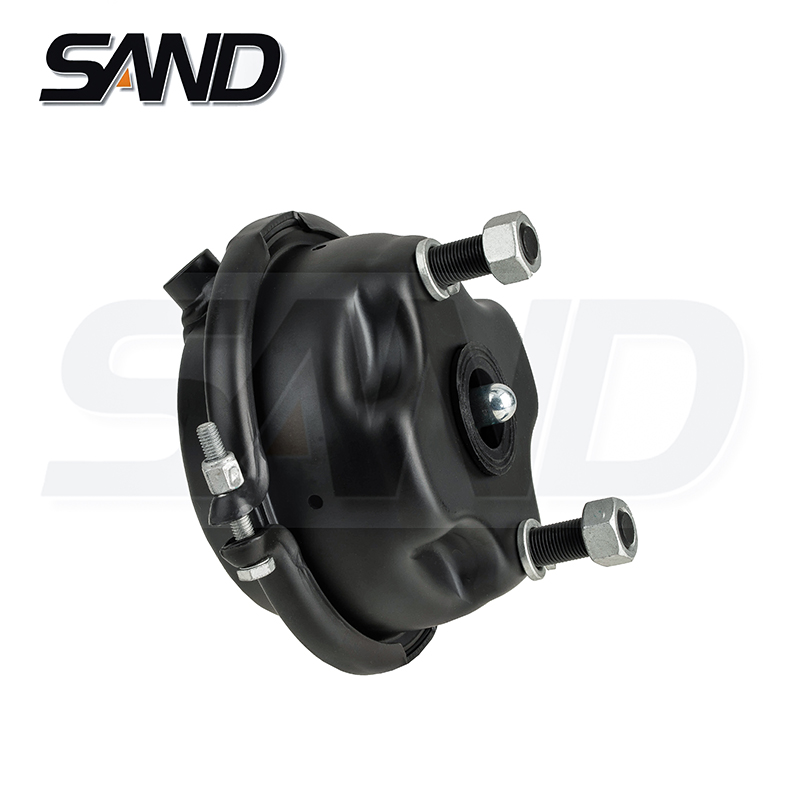

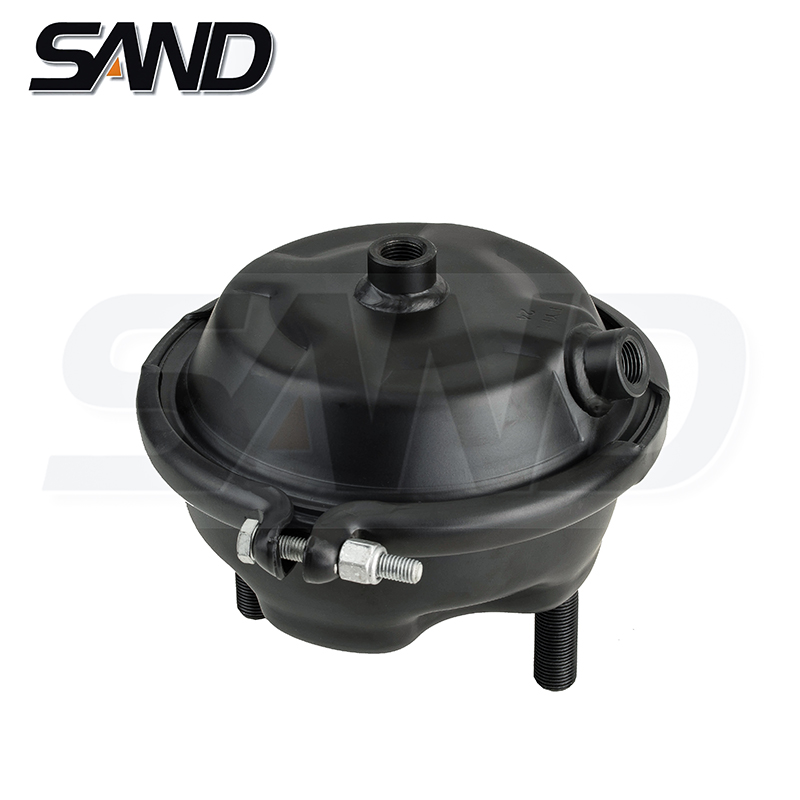

Cross Cover

OE Number : 4235100100; 4235061200 ; 4235060720; 20361838
Suitable for : RENAULT, VOLVO

Detailed Drawing

Catalogue

Parameters

TYPE	SD No.	Cross Ref No.	Ref No.	S STROKE	M1 side port	M2 centre port	α Port	β Clamp	L Length	Vehicle
22P2	SD01008C	4235100100	20361843 68323858	64	M16*1.5	M16*1.5	90	-45	15
24P2	SD01003C	4235061200 4235060710 4235060810	4235061200; 3177339; 20361838; 70369019; 68323861	64	M16*1.5	M16*1.5	-90	135	15
	SD01003C01	4235061310 4235061300 4235061010	20742389 7420533191				-90	90
	SD01003C05	4235060720 4235061020 4235060640	1076400 20708819 7421483526				0	-20
	SD01003C31				M16*1.5	M16*1.5+D	-90	135	15
24PL1	SD01013C			75	M22*1.5VOSS	/	0	45
