Regular S-cam DD
product
Regular S-cam DD
product

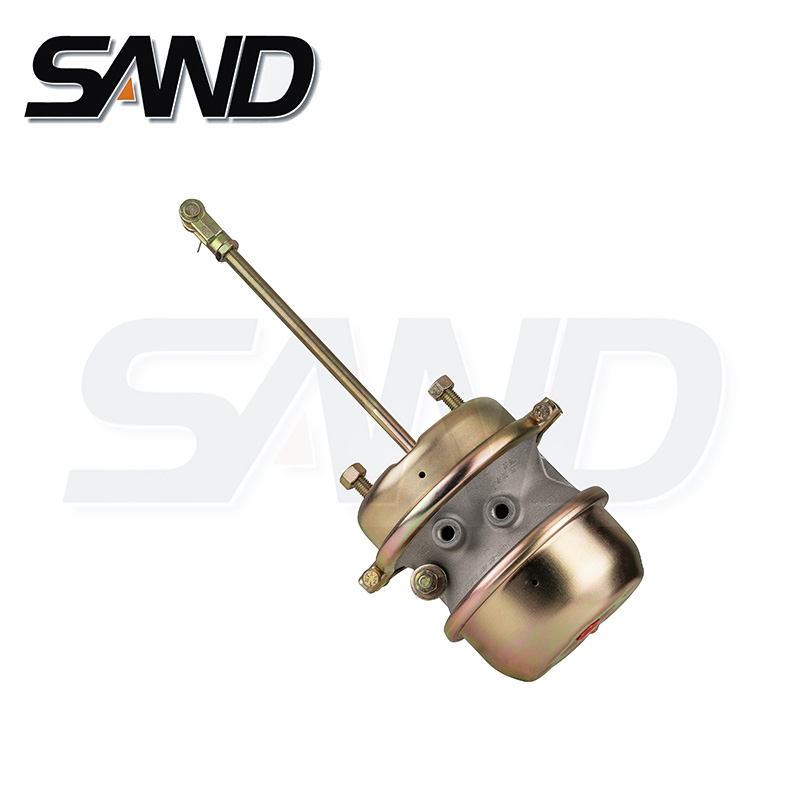

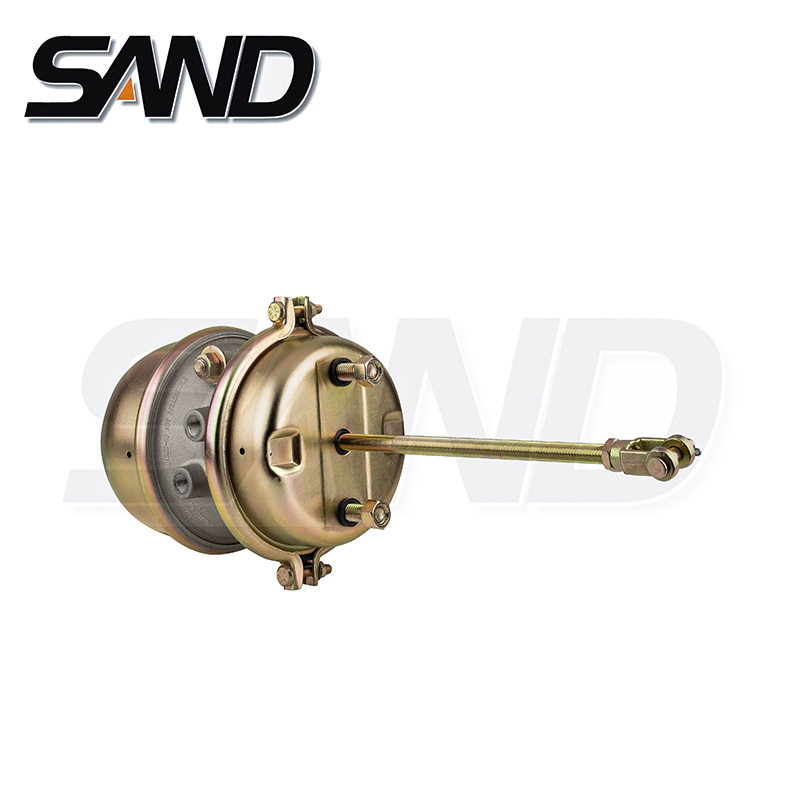

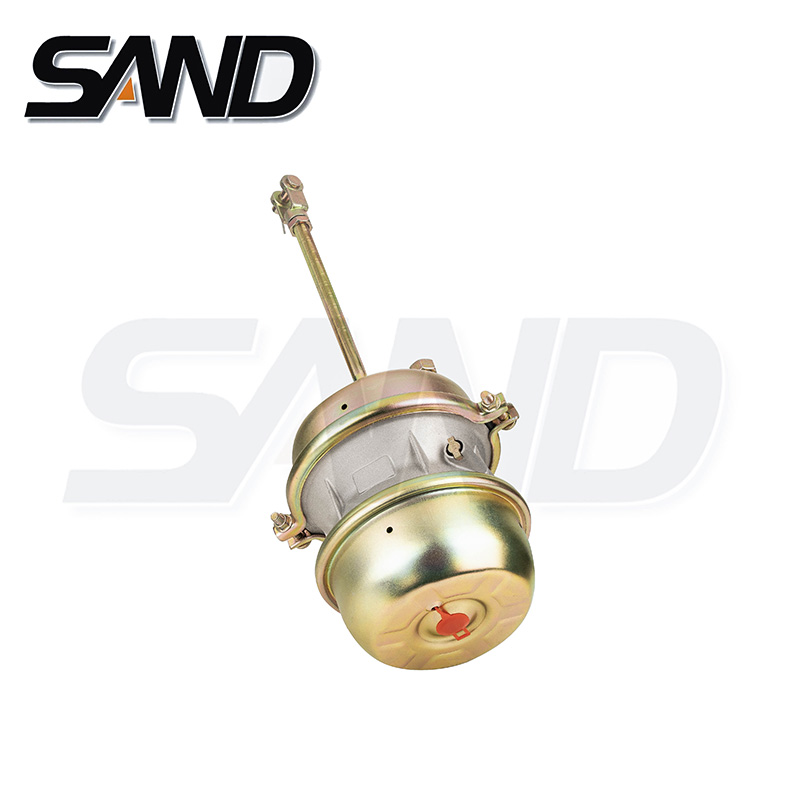

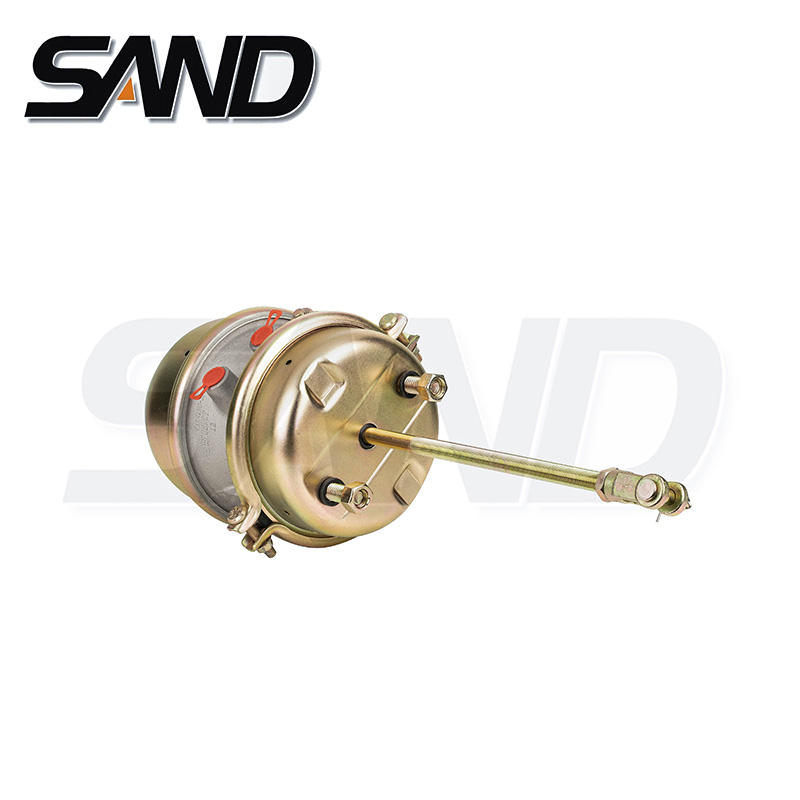

Regular S-cam DD

OE Number  :  SD-16/24G6901
Suitable for  :

Detailed Drawing

  • Regular S-cam DD
  • Regular S-cam DD
  • Regular S-cam DD
  • Regular S-cam DD
  • Regular S-cam DD
  • Regular S-cam DD
Contact Us
Parameters
TYPE SD NUMBER OE KNORR/WABCO PART NUMBER M α β F L1 L2
Double Clamps:
2024 SD52001 3/8"NPTF -90 0 5800 266
2424 SD52002 3/8"NPTF 90 -45 5800 235
2430 SD52003 3/8"NPTF -90 0 7200 325
2430GL SD52004 3/8"NPTF 90 45 7300 285
3030G SD52005 3/8"NPTF -90 0 7200 325
Half Sealed:
1624G SD52007 SD-16/24G6901 3/8"NPTF 90 -45 5800 206.5
2024G SD52001 3/8"NPTF -90 0 5800 266
2424G SD52002 2424GCLS 3/8"NPTF 90 -45 5800 235
2430GL SD52003SC 2430GCLS 3/8"NPTF -90 0 7300 310
2430GL SD52004SC 3/8"NPTF 90 45 7100 285
3030G SD52005SC 3/8"NPTF 90 45 7300 285
3030GL SD52008SC 3/8"NPTF 90 135 7100 266
3636GL SD52006 Z3/8 90 45 10800 281
All Sealed:
3030S SD52005SS Z3/8 90 / 250
